PRODUK

ROOTS BLOWER
DIFFUSER
TERPAL HDPE
KOLAM BUNDAR HDPE
PANEL
SUPERCHARGER AMR 500
KINCIR
UNIRING
CONNEKTOR
SELANG
GENSET
Inverter, Baseplate/Sasis, Inlet Silincer, Outlet Silincer, Cover, Pully Blower & Dynamo, Type
Tupperlock, Vanbelt, Adaptor
(Safety Valve, Ball Valve, Pressure Gauge), Check Valve, Flexible Joint, Baut In Out, Mounting Dudukan, garansi 1 tahun

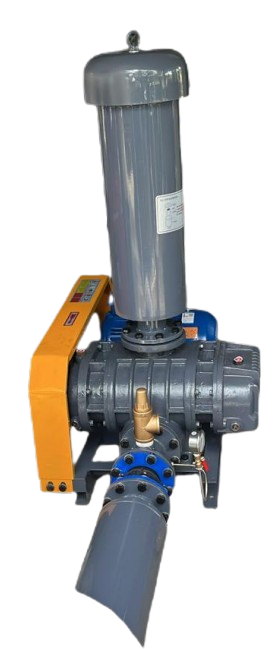

ROOTS BLOWER

TYPESPESIFIKASI
HDLH50discharger 2″ kapasitas 2.600 liter/menit
pressure 1000-4000 mmaq
power 4hp 3kw 380v
inverter 4hp 3kw
HDLH65discharger 2,5″ kapasitas 4.650 liter/menit
pressure 1000-4000 mmaq
power 5,5hp 4kw 380v
inverter 5,5hp 4kw 380v
HDLH80discharger 4″ kapasitas 12.100 liter/menit
pressure 1000-4000 mmaq
power 15hp 11kw 380v
inverter 15hp 11kw
HDLH125discharger 5″ kapasitas 22.260 liter/menit
pressure 1000-4000 mmaq
power 20hp 18,5kw 380v
inverter 20hp 18,5kw
HDLH150discharger 6″ kapasitas 28.750 liter/menit
pressure 1000-4000 mmaq
power 30hp 22kw 380v
inverter 30hp 22kw

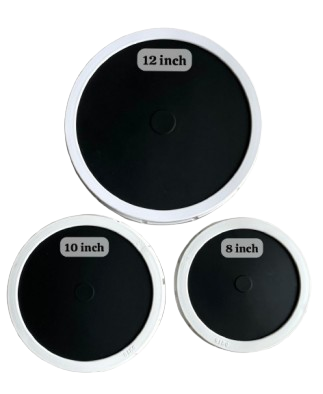

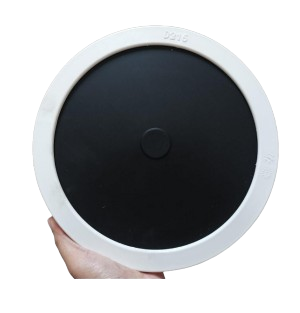

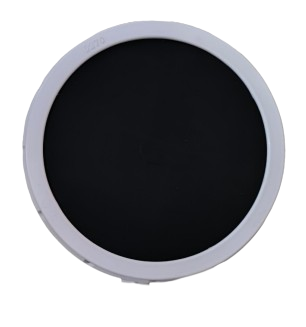

DIFFUSER

TYPESPESIFIKASI
diffuser hblq D350size :12 inch (diameter 350)
bubble type : fine bubble
moc (material of construction) : epdm/silicon/ptfe
membran germanstrengthened pp+gf (glass
fiber) carrier plate
bubble diameter : 0,8 – 2,0 mm
flow range : 1-12 m3/jam
design flow : 5-6 m3/jam
sote : ≥38% pada kedalaman 6 meter
sotr : ≥0,75kg O2/jam
sae : 8,9kg O2/kw.h
headloss : 1,5 – 4,3 kPa
service area : 0,4 – 1,5 m2/pcs
konektor : male 3/4″
service life : 5 tahun
diffuser hblq d270size :10 inch (diameter 270)
bubble type : fine bubble
moc (material of construction) : epdm/silicon/ptfe
membran germanstrengthened pp+gf (glass
fiber) carrier plate
bubble diameter : 0,8 – 2,0 mm
flow range : 1-8 m3/jam
design flow : 3-4 m3/jam
sote : ≥38% pada kedalaman 6 meter
sotr : ≥0,42kg O2/jam
sae : 8,9kg O2/kw.h
headloss : 1,5 – 4,3 kPa
service area : 0,2 – 1 m2/pcs
konektor : male 3/4″
service life : 5 tahun
diffuser hblq d215size :8 inch (diameter 215)
bubble type : fine bubble
moc (material of construction) : epdm/silicon/ptfe
membran germanstrengthened pp+gf (glass
fiber) carrier plate
bubble diameter : 0,8 – 2,0 mm
flow range : 1-6 m3/jam
design flow : 1,5-2,5 m3/jam
sote : ≥38% pada kedalaman 6 meter
sotr : ≥0,31kg O2/jam
sae : 8,9kg O2/kw.h
headloss : 1,5 – 4,3 kPa
service area : 0,2 – 0,64 m2/pcs
konektor : male 3/4″
service life :

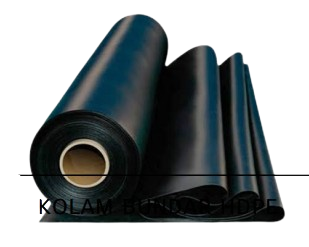

TERPAL HDPE

TYPESPESIFIKASI
uk 5,5 x 50 = 275
m2		hdpe geomembran 0,5 mm thick gri standart
uk 7 x 50 = 350 m2hdpe geomembran 0,5 mm thick gri standart
custom ukuranhdpe geomembran 0,5 mm thick gri standart

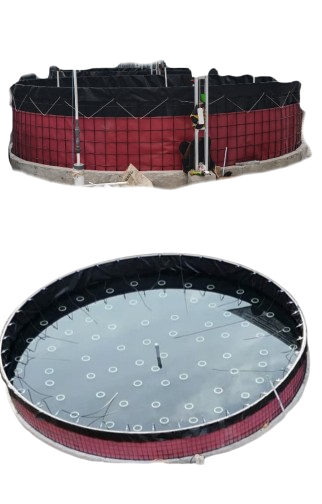

KOLAM BUNDAR HDPE

TYPESPESIFIKASI
DIAMETER 3HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 4HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 5HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 6HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 7HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 8HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 9HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET
DIAMETER 10HDPE 500 MICRON , TINGGI RANGKA 120 cm, FULLSET

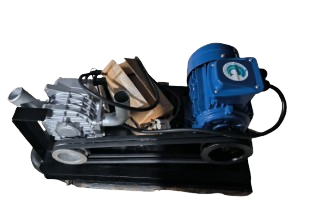

SUPERCHARGER AMR 500

TYPESPESIFIKASI
sc amr 500 1hp
motology		discharger 1,5″ Output 1000 liter/menit
pressure 900-1000 mmaq
power 1hp 0,75kw 380v
inverter 1hp
sc amr 500 2hp
motology		discharger 1,5″ output 1800 liter/menit
pressure 900-1000 mmaq
power 2hp 1,5kw 380v
inverter 2hp

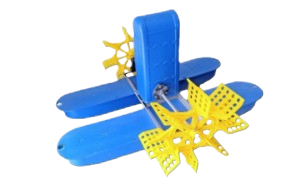

KINCIR

TYPESPESIFIKASI
kincir jinhulong1hp 3phase 380v hci 10766
kincir jinhulong1hp 3phase 380v abb sss 10767
kincir yc1hp 0,75kw 3phase
kincir jinhulong1hp 1phase 220 hci10766

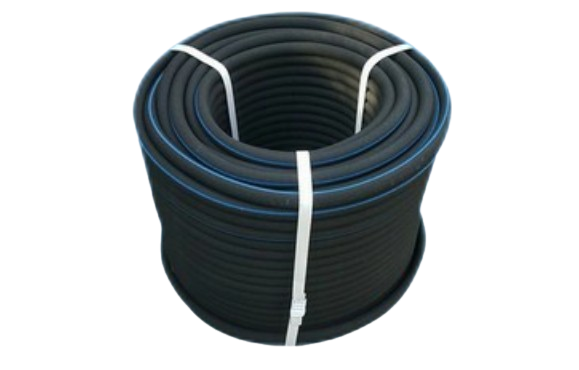

UNIRING

TYPESPESIFIKASI
uniring 25/16 garis
1		gelembung halus, tekanan besar
uniring 25/16 garis
2		gelembung kasar, tekanan rendah

CONNEKTOR

TYPESPESIFIKASI

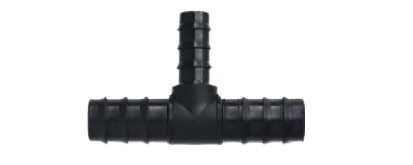

tee uniringukuran 20x20x20
tee uniringukuran 20x16x20
neple dratneple drat 3/4″ x 16/20 mm
neple dratneple drat 1/2″ x 16/20 mm
neple l dratneple elbow 3/4″ x 16/20 mm
stop kran 1/2″set kran 1/2″ + sdd 1/2″ + connekor 16/20
mm
stop kran 3/4″set kran 3/4″ + sdd 3/4″ + connektor 16/20
mm

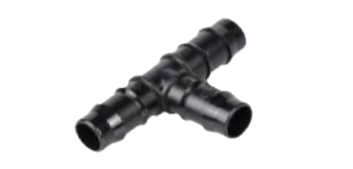

tee uniring
tee uniring
neple drat
neple l drat

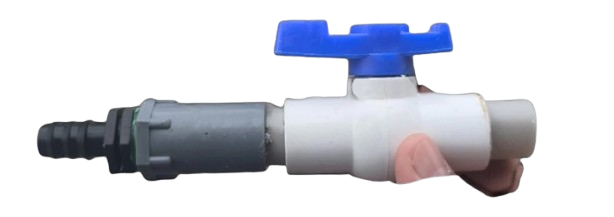

stop kran

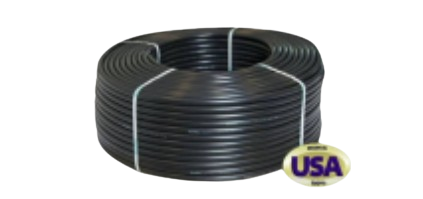

SELANG

TYPESPESIFIKASI
selang peukuran 16 mm
selang peukuran 20 mm

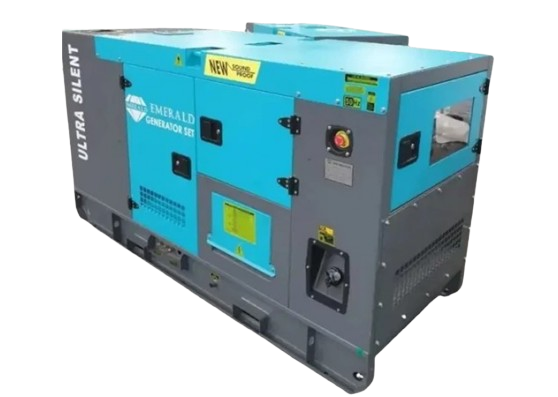

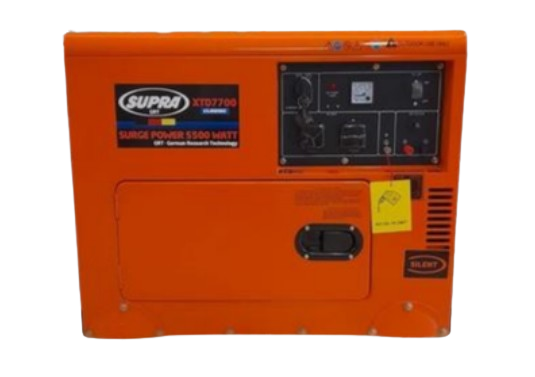

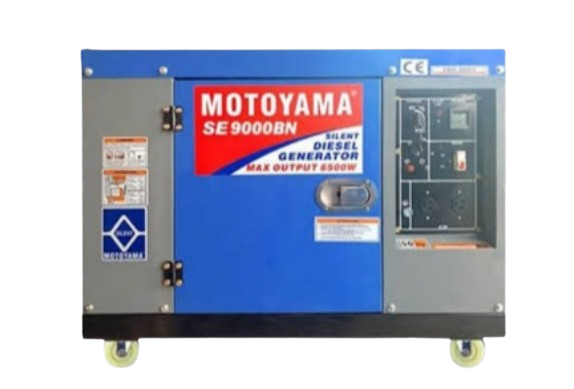

GENSET

TYPESPESIFIKASI
genset silentmax output : 5,5 kw / 6,8 kva
reated ac output : 5 kw / 6,3 kva
phase : 1/3 220/380v
bahan bakar diesel
genset silentmax output : 8 kw / 10 kva
reated ac output : 7 kw / 9 kva
phase : 1/3 220/380v
bahan bakar diesel
genset silentmax output : 9,6 kw / 12 kva
reated ac output : 8 kw / 10 kva
phase : 1/3 220/380v
bahan bakar diesel
genset silentmax output : 12 kw / 15 kva
reated ac output : 10 kw / 12,5 kva
phase : 1/2 220/380v
bahan bakar diesel
genset silentreated ac ouput : 16 kw / 20 kva
phase : 1/2 220/380
bahan bakar diesel
genset silentreated ac output : 24 kw / 30 kva
phase : 1/2 220/380
bahan bakar diesel

PANEL

TYPESPESIFIKASI
panel blower
otomatis hidup
bergantian 5,5kw – 11kw		kontaktor mitsubishi
digital meter larkin
panel 50x70x20
(tidak termaksud inverter)
garansi 1 tahun

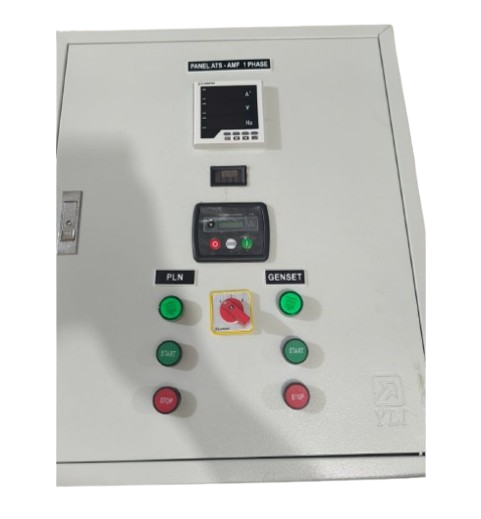

panel ats amf 1
phase 5,5kw – 13kw		kontaktor mistsubishi
digital meter larkin
modul dse oem
mcb schneider
charger batre 12/24v
panel 50x60x20
garansi 1 tahun
panel ats amf
3phase 12kw – 22kw		kontaktor mitsubishi
ats amf larkin
digital meter larkin
mcb schneider
charger batre 12/24v
panel 50x70x20
garansi 1 tahun
panel star delta
5,5kw – 11 kw		kontaktor mitsubishi
mccb mitsubishi
digital meter fort
panel 50x70x20
garansi 1 tahun
panel custom
lvmdp, distribusi, panel kincir		part mitsubishi
mcb schneider
digital fort
